For different users and test conditions, we can design and produce different sizes special environmental chambers to simulate different environmental conditions. Introduction Room, high and low temperature in improving the reliability of the at the same time, greatly reduces the power consumption, Using the temperature and humidity control system can realize automation and easy operation and development of new energy saving technology. Operators can into the lab to manipulate the characteristics of the experiment, for aerospace products, industrial products manufacturer in bulk or large parts, semi-finished products, product temperature (wet) provides the degree of environmental test conditions. Feature

• board by the self-made warehouse assembly at the scene, and can provide various size specifications of the products according to the needs of users;
• of the science of air flow design, make indoor temperature consistent (wet), avoid any corner;
• 7 inch LCD touch screen, temperature and humidity control system configuration in Chinese color display screen, a high degree of automation, simple operation;
• programming for man-machine dialogue way, even for the first time the user can be barrier-free operation;
• wireless alarm system, intelligent mobile phone and the perfect combination of instrument monitoring alarm system;
• every product according to customer requirements, to ensure the equipment of applicability and high efficiency, energy saving;
• according to need to use air cooled or water-cooled cooling way.

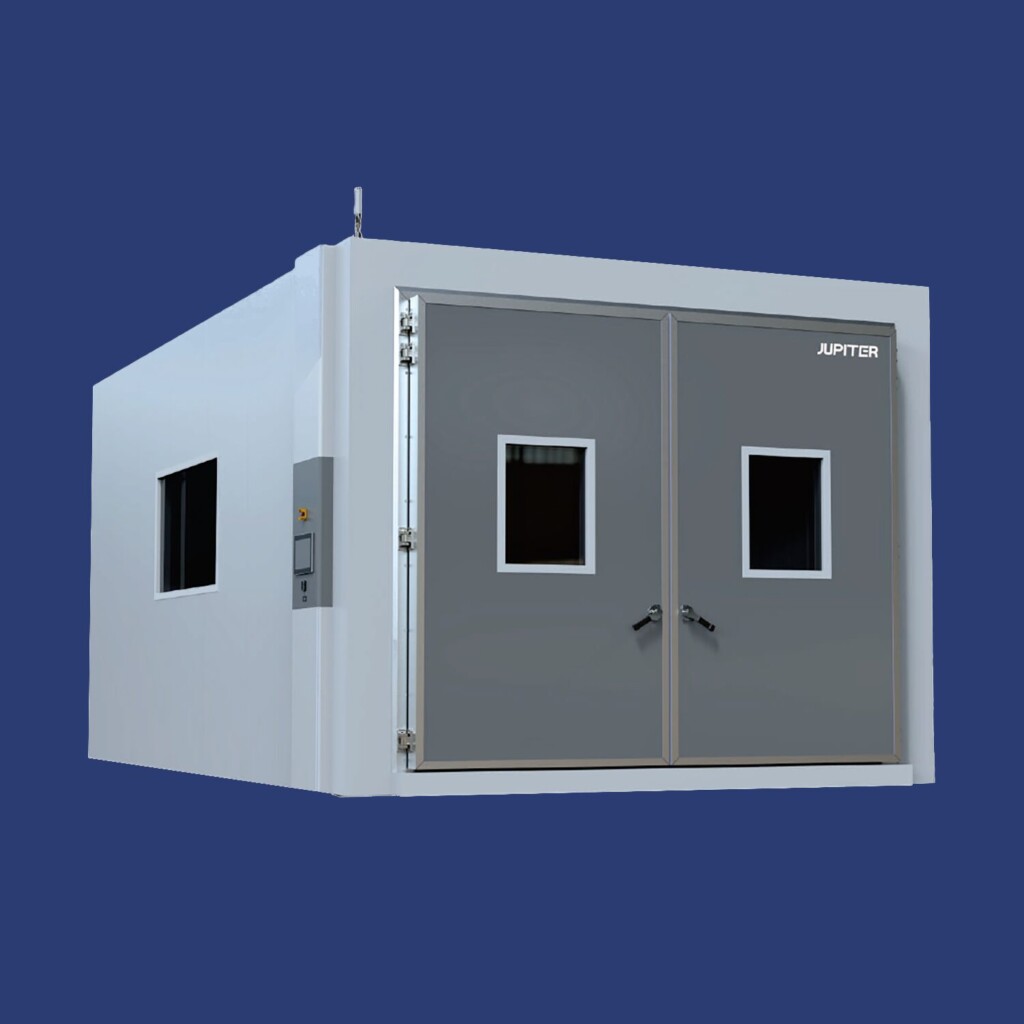

Walk-in Test chamber
Model			JWC8-6085	JWC12-6085	JWC20-6085	JWC30-6085	JW40-6085
Nominal internal volume（m³)			8m³	12m³	20m³	30m³	40m³
Performance	Temperature range		Optional range: -60 ℃ (-20 ℃, 40℃, 60℃)~High temperature+85 ℃ (+85 ℃, +120℃, +150 ℃)
	Temperature range（JWC series only）		20%~98% R.H. (humidity working range+20 ℃~+85 ℃)
	Temperature fluctuation		≤±0.5
	Temperature uniformity		≤2℃
	Temperature deviation		≤±2℃
	Temperature deviation（JWC series only）		-3~+2%R.H.(75%R.H.above), ±5%R.H.(75%R.H.following)
	Heating rate（average）		Optional range: 0.5~15 ℃/min, load can be specified
	Cooling rate（average）		Optional range: 0.5~15 ℃/min, load can be specified
	Remarks		Above indicators are measured in no load at ambient temperature of 20±2°C (According to GB/T 5170.2-2017)
Internal dimensions（mm）		D	2000	3000	4000	4000	5000
		W	2000	2000	2500	3000	3200
		H	2000	2000	2000	2500	2500
External dimensions（mm）		D	3000	3000	5000	5000	6000
		W	2240	2240	2740	2740	2940
		H	2320	2320	2320	2820	2820
		Remarks	The above external dimensions do not include unit dimensions.
Test hole			TwoΦ100, On the right side
Using environment temperature			5-40 ℃
Shell			Sprayed steel plate
Interior			SUS304 stainless steel
Cooling mode			Air-cooled（water temperature 7～28℃，hydraulic pressure 0.2～0.5Mpa， To ensure cooling performance）
Controller			10′ Color touch screen Controller
Input			PT100+imported capacitive humidity sensor
Communication function			RS485 or standard RJ45 network interface, standard USB interface
Power supply			380V+10%/50HZ+1,three-phase-five-wire system (3P+N+G)
Meet the testing method			GB2423.1-2008、GB2423.2-2008、GB2423.3-2008:GB2423.4-2008 GJB150.3-2009、GJB150,4-2009、GJB150.9-2009
Safety precautions			Power supply undervoltage, overvoltage, phase loss, and phase sequence error protection; Triple over temperature protection; Short circuit protection for heater, refrigeration unit exceeding Voltage/ overload protection; Overload/ overheating protection for blower motor; Control board overcurrent protection and leakage protection, humidification fault protection.
Optional			Special testing holes, slopes, customized temperature rise and fall rates, etc.
