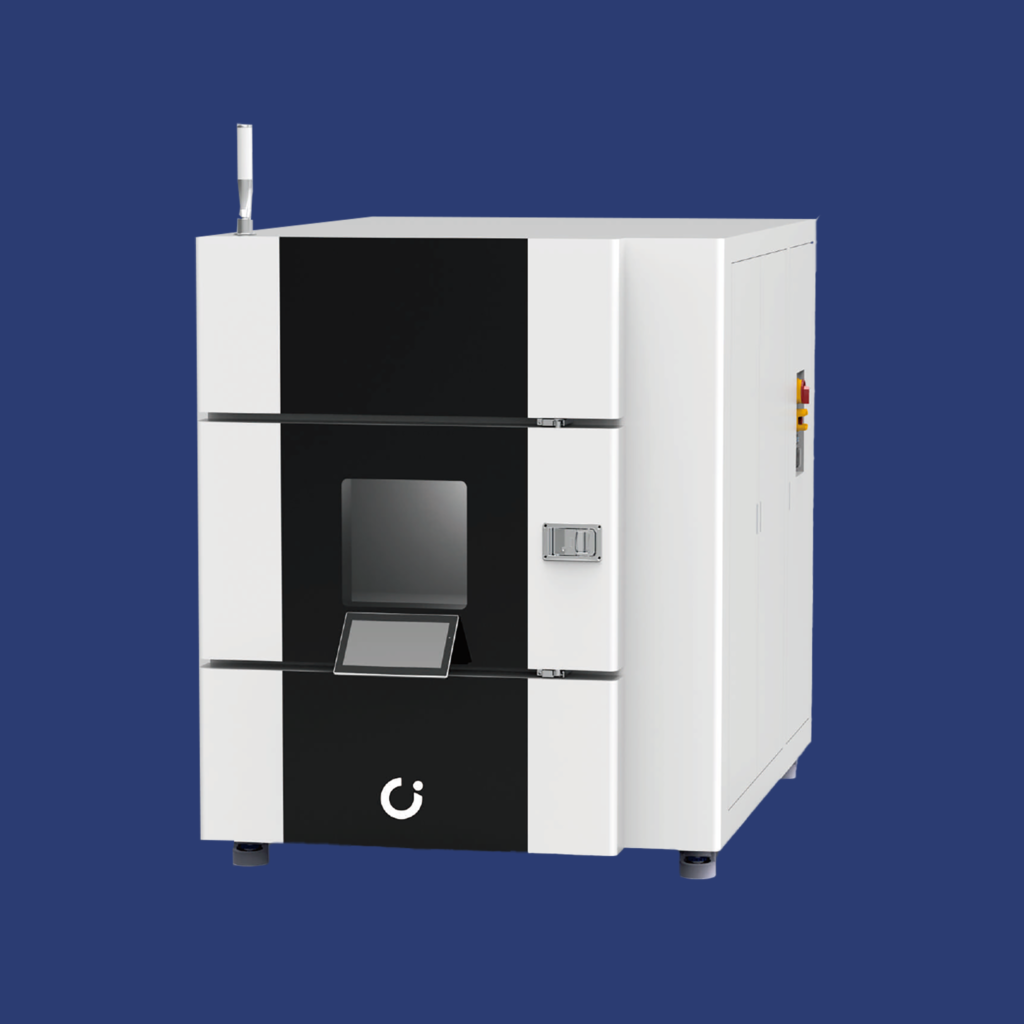

Temperature Shock Chamber（Three Chamber)

Categories: Thermal Shock Test Chamber

Follow:

Description

Introduction
Adapted to determine the clean materials, electronics, electrical products, components and military equipment, etc. according to the national standard, military standard requirements when subjected to abrupt changes in the ambient air temperature (temperature shocks) when, whether to generate physical damage or performance degradation.

Feature

3 cases of equipment is divided into: high temperature, low temperature area, test area, test the product in the test area, impact at high temperature or low temperature zone temperature impact test area, test the product for static type.
The touch controller interface, operation easy.
Impact mode application wind path switching mode will import test temperature zone, cold and hot shock tests.
High temperature shock or the impact of low temperature and maximum time of up to 999 h, the maximum cycle of up to 9999 times.
System can make automatic cycle official holding or manual selective shock impact and can be set two areas or areas and cold heat impact and inception.
Cooling binary refrigeration system, cooling rapidly, for water-cooled cooling way.
Can perform impact test at room temperature to meet the standard and test method: GJB150.5 temperature impact test; GJB360.7 temperature impact test; GB / 2423.22 temperature impact test.

Temperature Shock Chamber（Three Chamber)
Model			JTS72F-B/S/E	JTS100F-B/S/E	JTS150F-B/S/E	JTS200F-B/S/E	JTS320F-B/S/E	JTS500F-B/S/E	JTS1000F-B/S/E
Nominal inside volume（L)			72L	100L	150L	200L	320L	500L	1000L
Performance parameter	Heat storage chamber	Temperature exposure range	+50℃～+150℃
		Upper limit of preheating temperature	200℃
		Heating time	RT~+200℃, B type: ≤50 min; S type: ≤40 min; E type: ≤30 min
	Cold storage chamber	Temperature exposure range	B type: 0～-40℃; S type: 0～-55℃; E type: 0～-65℃
		Lower limit of pre cooling temperature	-75℃
		Cooling time	RT~-70℃, B type: ≤60 min; S type: ≤50 min; E type: ≤40 min
	Chamber	Temperature shock range	B type: -40℃～+150℃; S type: -55℃～+150℃; E type: -65℃～+150℃
		Temperature fluctuation	≤±0.5
		Temperature uniformity	≤2℃
		Temperature deviation	≤±2℃
		Transfer time	≤10s
		Temperature recovery time	≤5min
		Load (steel)	3kg	5kg	7kg	10kg	15kg	20kg	40kg
	Optional: High and low temperature test function	Temperature range	-65℃～+150℃
		Temperature rise and fall rate	B type nearly 2℃/min, S type nearly 3℃/min, E nearly 4℃/min
		Remarks	Above indicators are measured in no load at ambient temperature of 20±2°C(According to GB/T 5170.2-2017)
Internal dimensions		D	400	500	500	600	700	800	1000
		W	450	500	600	600	700	900	1000
		H	400	400	500	550	650	700	1000
External dimensions		D	2150	2300	2300	2500	2600	2800	3600
		W	1450	1500	1600	1600	1700	1900	2550
		H	2000	2000	2200	2300	2500	2620	2250
Caster			4 -6 standard casters						/
Test hole			Φ50					Φ100
Stainless steel shelf (2 pcs in standard configuration)			Bearing 20kg/pc	Bearing 30kg/pc			Bearing 50kg/pc
Using environment temperature			0～+40℃
Shell			Sprayed steel plate
Interior			SUS 304 stainless steel
Cooling mode			water-cooling, (water temperature 7～28℃, hydraulic pressure 0.2～0.4Mpa, to ensure cooling performance)
Controller			7′ Color touch screen Controller
Communication function			RS485 or standard RJ45 network interface, standard USB interface
Installed capacity(kw)(L/S/E)			13/17/22	17/22/29	23/28/34	27/33/40	33/40/50	50/60/75	75/90/110
Weight(kg)			800	1300	1600	1900	2500	2800	3600
Meet the testing method			GJB150.5-2009, GB/T2423-2008. The optional high and low temperature test function also meets GB2423.1-2008, GB2423.2-2008, GJB150.3-2009, GJB150.4-2009.
Safety precautions			Power supply undervoltage, overvoltage, phase loss, and phase sequence error protection; Triple over temperature protection; Heater short circuit protection, refrigeration unit overpressure/ overload/ oil shortage protection; Humidifier fault protection; Overload/ overheating protection for blower motor, overcurrent protection and leakage protection for control board; Cooling water shortage protection, gas source undervoltage protection, etc.
Optional			1.Optional high and low temperature testing function; 2. Optional special test holes and special shelves; 3. Optional liquid nitrogen function.
