Introduction

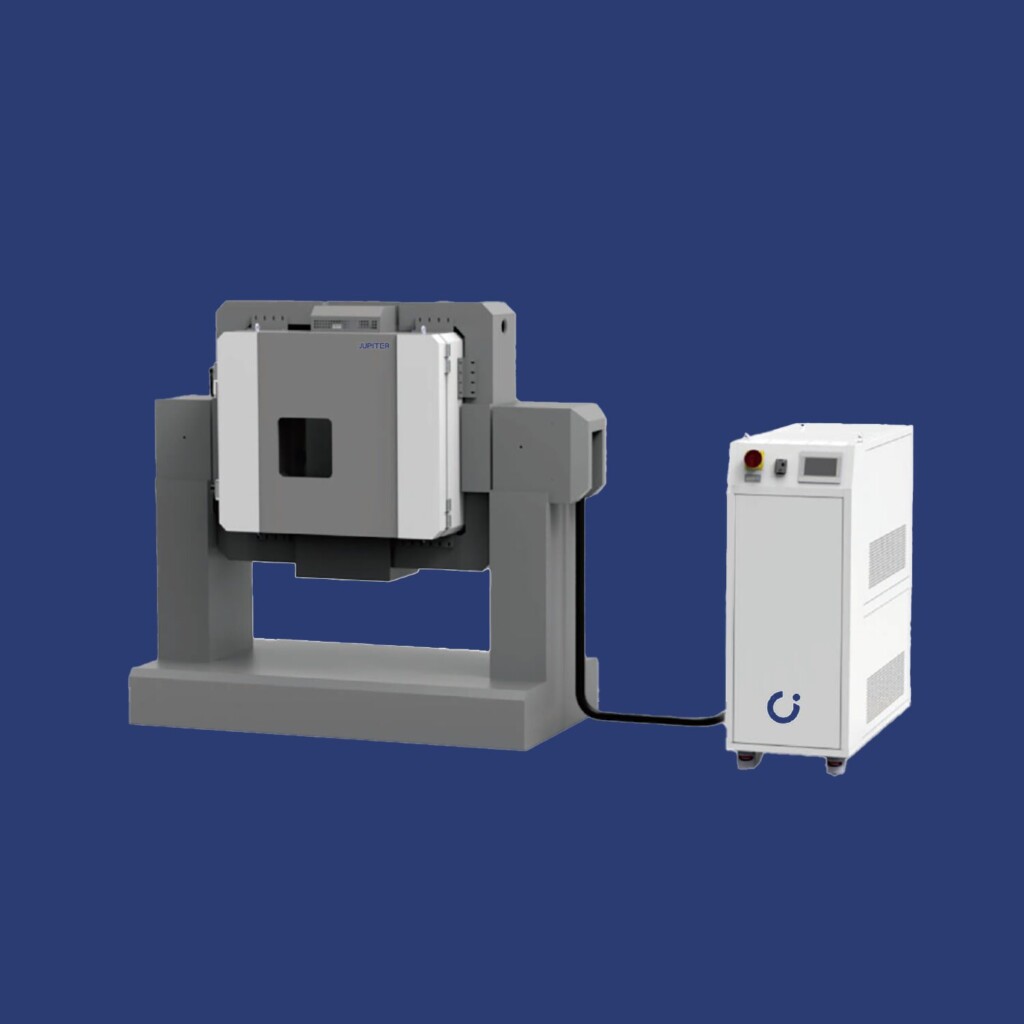

In the multi-axis rotation and different temperature, humidity and other environmental conditions, test the impact of environmental conditions on the performance of the device under test. For example, widely used in navigation, positioning and other areas of the gyroscope, test, gyroscope placed in a closed test chamber , and then multi-axis rotation device to drive the test chamber to achieve different axial independent rotation of the complex rotation, at the same time, the test chamber through the temperature control device to control the gas in the test chamber to reach different temperatures, and then test the gyroscope in the rotation conditions, the impact of different ambient temperatures on the performance of the gyroscope.
| Rotating Temperature Test Chamber | ||||||||
| Model | JTR90-Y | JTR125-Y | JTR180-Y | JTR216-Y | JTR275Y | JT340-Y | ||
| Nominal inside volume（L) | 90L | 125L | 180L | 216L | 275L | 340L | ||
| Performance | Temperature range | Single axis X; dual axis series -60 ℃~+125 ℃; triple axis Z series -55 ℃~+100 ℃ | ||||||
| Temperature fluctuation | ≤±0.5 | |||||||
| Temperature uniformity | ≤2℃ | |||||||
| Temperature deviation | ≤±2℃ | |||||||
| Heating rate（average） | 2℃/min(On load, within the range of+85/-55 ℃) | |||||||
| Cooling rate（average） | 2℃/min(On load, within the range of+85/-55 ℃) | |||||||
| Standard load（kg Steel ingots） | 50 | 60 | 70 | 70 | 80 | 90 | ||
| Remarks | Above indicators are measured in no load at ambient temperature of 20±2℃ (According to GB/T 5170.2-2017) | |||||||
| Internal dimension (mm) | 450*450*450 | 500*500*500 | 600*600*500 | 600*600*600 | 650*650*650 | 700*700*700 | ||
| Unit size (mm) | 1500*600*1650 | 1500*600*1650 | 1500*600*1650 | 1430*850*1350 | 1430*850*1350 | 1430*850*1350 | ||
| Rotation direction | Arbitrary rotation of X-Y-Z axis | |||||||
| Using environment temperature | 5-35 ℃(temperature rise and fall rate measured at ambient temperature of 20 ± 2 ℃) | |||||||
| Shell | Sprayed steel plate | |||||||
| Interior | SUS304 stainless steel plate | |||||||
| Cooling mode | Air-cooled | |||||||
| Controller | 7′ Color touch screen Controller | |||||||
| Communication function | RS485 or standard RJ45 network interface, standard USB interface | |||||||
| Power supply | 380V+10%/50HZ+1,three-phase-five-wire system (3P+N+G) | |||||||
| Installed capacity(kw)(-/-C) | 7kw | 7.5kw | 9kw | 12kw | 13kw | 15kw | ||
| Weight(kg) | 155kg | 172kg | 190kg | 200kg | 223kg | 240kg | ||
| Meet the testing method | GB2423.1-2008、GB2423.2-2008、GJB150.3-2009、GJB150.4-2009 | |||||||
| Safety precautions | Power supply undervoltage, overvoltage, phase loss, and phase sequence error protection; Triple over temperature protection; Short circuit protection for heater, refrigeration unit exceeding Voltage/ overload protection; Overload/ overheating protection for blower motor; Control board overcurrent protection and leakage protection | |||||||
| Optional | Water cooling methods, temperature range, temperature change rate, customized studio size | |||||||
