Model Description JC-Series High and Low Temperature (Humidity) Test Chamber

• JC-Temperature (Humidity) Series
• 330 – Chamber volume (unit: L)
• C-minimum temperature -70°C/no C-minimum temperature -40°C

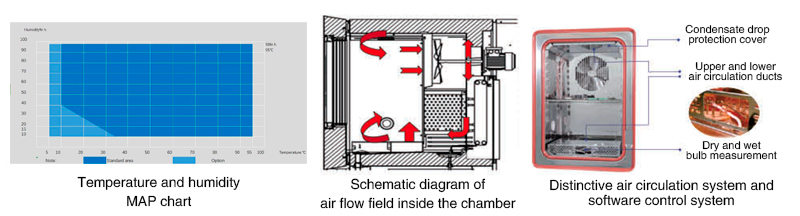

  Product Feature The whole system is equipped with 10-inch color capacitive touch screen as standard, which provides better user experience and improves the convenience of user touch operation.   Using independent intelligent control logic system, can more accurately control the temperature and humidity curve, with a wider range of temperature and humidity capabilities (see humidity MAP chart), to meet the user’s diverse testing needs.   The inner chamber is made of SUS304 mirror stainless steel, which has excellent corrosion resistance, easy to clean surface, and more convenient maintenance.   Distinctive air circulation system and software control system can minimize the water consumption of the equipment in the mode of humid and hot working conditions (without recycling water). Under the same operating conditions, the water consumption per unit of time demonstrates excellent water-saving performance.   Advanced energy-saving design, the use of intelligent control system + special air circulation system can automatically adjust the operating parameters of the equipment to achieve effective use of energy.

JC-Series High and Low Temperature (Humidity) Test Chamber
Model		JC330(C)	JC610(C)	JC1000(C)	JC1500(C)	JC2000(C)
Nominal inside volume（L)		335	605	1000	1530	2000
Internal dimension（mm）	D	760	795	960	1470	1670
	W	585	800	1100	1100	1100
	H	750	950	950	950	1100
External dimension（mm）	D	1820	1850	2000	2525	2700
	W	880	1100	1450	1450	1430
	H	1950	2230	2230	2230	2400
Performance Parameters	Minimum temperature ℃	End with C: minimum temperature -70℃; without C: minimum temperature -40℃
	Maximum temperature ℃	+180℃(Maximum temperature can be up to 220℃ according to user’s actual demand)
	Temperature fluctuation ℃	±0.1℃~±0.5℃
	Temperature uniformity ℃	≦2℃(≤150℃)
	Temperature deviation ℃	≦±2℃
	Temperature rise rate ℃/min	4.0	6.0	4.0	4.0	3.0
	Cooling rate ℃/min	3.5	2.6	2.8	2.5	2.0
	Humidity range %R.H.	10%~+98% R.H. (humidity operating range +10°C~+95°C)
	Dew point temperature range ℃	0~94℃
	Humidity deviation %R.H.	-3%R.H.~+2%R.H.
	Humidity fluctuation %R.H.	≤ ± 3 %R.H.
	Test method	The above indexes are measured at no load, ambient temperature 20±2℃ (according to GB/T 5170.2-2017) Rate assessment range:Tmin-Tmax, according to IEC60068-3-5, measured at the air outlet, empty chamber indicator. Temperature and humidity performance test according to standard IEC60068-3-5, the sensor is placed at the air outlet of the air handling unit.
Meets standards		①Low Temperature Test: IEC 60068-2-1; IEC 60721-4; MIL-STD-810 G, Meth.502.5; GB/T2423.1 TestA ②High temperature test: IEC 60068-2-2; IEC 60721-4; MIL-STD-202 G, Meth.108A; MIL-STD-810 G, Meth.501.5; MIL-STD-883 J, Meth.1008.2; GB/T 2423.2 Test B ③Temperature and humidity tests: IEC 60068-2-67; IEC 60068-2-78; IEC 60721-4; ISO 16750-4, Damp heat steady; GB/T 2423.3 Test Cab; GB/T 2423.4 Test Db -Test cycle-Variant 1 and Variant 2; GB/T 2423.50 Test Cy; lEC 60068-2-30 Test Db -Test cycle -Variant 1 and Variant 2
Thermal compensation capacity		1500-3000 W
Cooling method		400W (temperature 25°C to 90°C, humidity not exceeding 90%)
