Air Cooled Shaker

The air-cooled series electro-dynamic vibration test system has the advantages, such as wide frequency range, excellent indicators, high reliability, small floor space, easy to move, and easy to operate. At present, this series has a variety of models of vibration generators to choose. The exciting force range is from 1kN to 70kN and maximum load is from 70 kg to 1000 kg. Also, the climate and mechanics environmental testing equipments are provided.

Performance characteristics

Sinusoidal excitation force range: 1kN ~ 70kN

Random to sinusoidal excitation force ratio 1:1

Two-times-of-sine shock force (Three times optional)

Displacement peak-to-peak value of 25mm, 40mm, 51mm, 76mm or 100mm

Lightweight armature with optimization design and strong vibration-resistant performance, and with better vibration isolation effect of air spring at trunnion position

Strong bearing capacity of air spring in central room, and good low-frequency performance

Double magnetic circuit design, with low flux leakage and uniform magnetic field

Sine, Random and Shock etc. test function

Good cooling effect and low noise fan

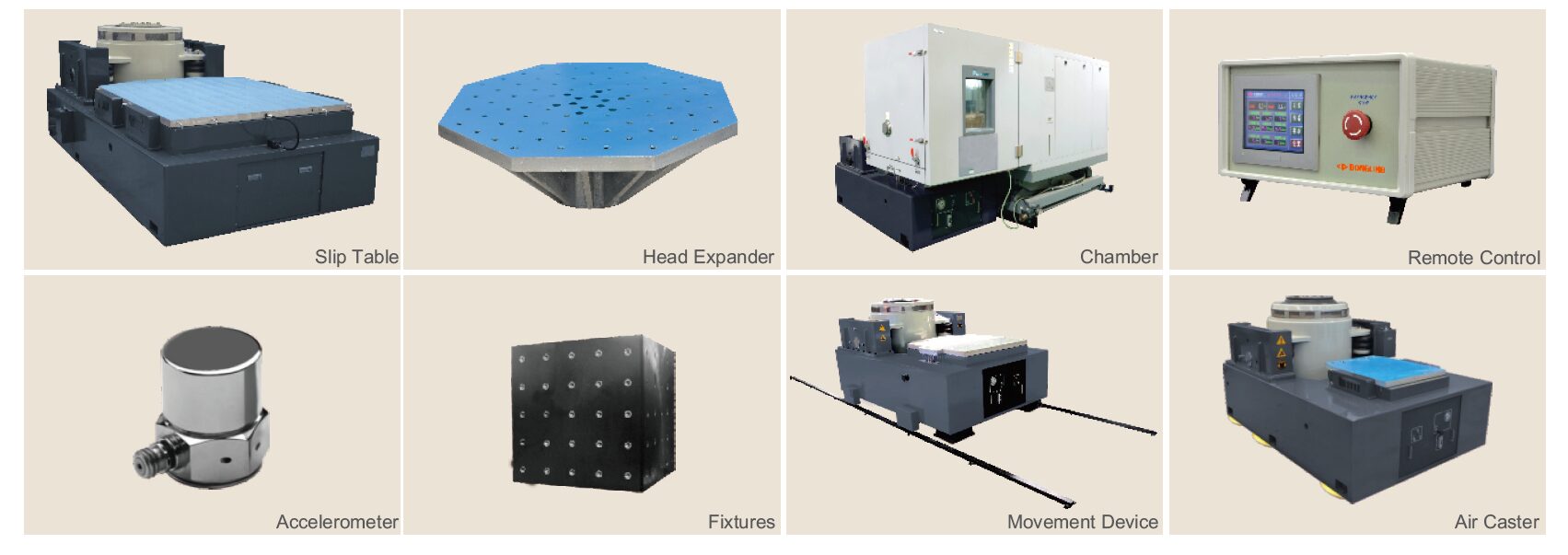

Optional accessories

ES-60-445 Air Cooled Shaker

System Model	ES-60-445
System Performance	Metric	American
Rated Sine Force	60 kN	13200 lbf
Rated Random Force	60 kN	13200 lbf
Rated Shock Force	120/180* kN	26400/39600* lbf
Usable Frequency	DC-2700 Hz	DC-2700 Hz
Maximum Velocity	2/2.5* m/s	78.7/98.4* in/s
Maximum Acceleration	1000 m/s²	100 g
Maximum Static Payload	800 kg	1760 lbs
Resonance Frequency	2400±5% Hz	2400±5% Hz
Maximum Displacement (p-p)	51 mm	2 in
Shaker Model	ET-60-445
Mass of Moving Elements	60 kg	132 lbs
Armature Diameter	445 mm	17.5 in
Weight Uncrated	4500 kg	9921 lbs
Body Suspension Natural Frequency	<2.5 Hz	<2.5 Hz
Stray Flux Density	<10 Gauss	<10 Gauss
Dimension L×W×H	1700×1130×1264 mm	66.9×44.5×49.3 in
Power Amplifier Model	SDA-60
Power	60 kVA	60 kVA
Power Supply Requirement	95 kVA	95 kVA
Dimension L×W×H	620×1010×1960 mm	24.4×39.8×77.2 in
Weight Uncrated	600 kg	1323 lbs
Blower Model	B-7000
Power	22 kW	29.5 hp
Air Flow	1.6 m³/s	1600 l/s
Air Pressure	8 kPa	1.16 psi
Weight Uncrated	340 kg	750 lbs
Options	● Magnesium or Aluminum Armature ● Combo or Standalone Slip Table ● Motorized Shaker Body Rotation System ● Head Expanders and Vertical Support Platforms ● Thermal barrier ● Customized Fixtures (T, L, Cube) ● Pneumatic Isolators or Free Foundation Isolation Base ● Air Caster or Glide Rail ● Enclosed Air Inlet and Outlet Ducts ● Remote control

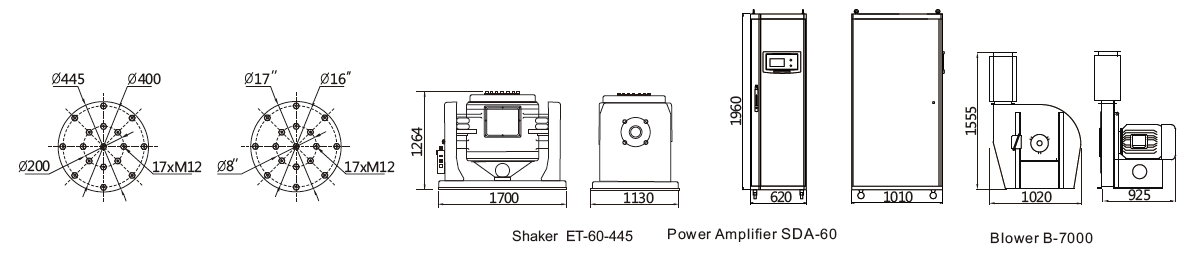

Outline Drawing

NOTE: In keeping with our commitment to continuous product improvement, the information herein is subject to change. Additional Models & Customization: We also offer a wide range of models and customization options to meet specific testing needs. Please contact us for more details.
