Water-cooled vibration test system features with the large force, large bearing capacity and high cooling efficiency, to complete the tri-axial sinusoidal vibration test, broadband random vibration test and classical (semisinusoidal, trapezoidal, and postpeak sawtooth) pulse and shock response spectrum test. The multi-environment combined test can be completed with the equipped climate chamber. At present, this series has a variety of models to choose. The exciting force range is from 50 kN to 500 kN and maximum load is from 800 kg to 10000 kg.
| Random to sinusoidal excitation force ratio: 1:1 |
| Two-times-of-sine shock force (Three times optional) |
| Displacement peak-to-peak: 51mm, 76mm or 100mm |
| Lightweight armature and large working table |
| Better vibration isolation effect of air spring at trunnion position |
| Large bearing capacity of air spring in central room, andgoodlow-frequency performance |
| Equipped with an automatic centering system, to control the armature is always in the balance position during movement |
| Double magnetic circuit design, with low flux leakage and uniform magnetic field |
| Electric power rotating mechanism is configured forhorizontal and vertical switching |
| System Model | ES-70WLS3-445 | |
| System Performance | Metric | American |
| Rated Sine Force | 70 kN | 15400 lbf |
| Rated Random Force | 70 kN | 15400 lbf |
| Rated Shock Force | 140/210* kN | 30800/46200* lbf |
| Usable Frequency | DC-2700 Hz | DC-2700 Hz |
| Maximum Velocity | 2/2.5* m/s | 78.7/98.4* in/s |
| Maximum Acceleration | 1000 m/s² | 100 g |
| Maximum Static Payload | 800 kg | 1763 lbs |
| Resonance Frequency | 2200±5% Hz | 2200±5% Hz |
| Maximum Displacement (p-p) | 76 mm | 3 in |
| Shaker Model | ET-70WLS3-445 | |
| Mass of Moving Elements | 60 kg | 132 lbs |
| Armature Diameter | 445 mm | 17.5 in |
| Weight Uncrated | 4500 kg | 9921 lbs |
| Body Suspension Natural Frequency | <2.5 Hz | <2.5 Hz |
| Stray Flux Density | <10 Gauss | <10 Gauss |
| Dimension L×W×H | 1692×1104×1288 mm | 66.6×43.5×50.7 in |
| Power Amplifier Model | SDA-70W | |
| Power | 70 kVA | 70 kVA |
| Power Supply Requirement | 110 kVA | 110 kVA |
| Dimension L×W×H | 1180×850×1983 mm | 46.5×33.5×78 in |
| Weight Uncrated | 1000 kg | 2205 lbs |
| Water Cooling Model | CU-1 | |
| Internal Circle Water Flow (Distilled Water) | 40 L/min | 8.8 gal/min |
| Internal Circle Water Pressure (Distilled Water) | 1 Mpa | 145 psi |
| External Circle Water Flow (City Water) | 100 L/min | 22 gal/min |
| External Circle Water Pressure (City Water) | 0.25-0.4 Mpa | 36-58 psi |
| Water Pump Power (Internal/External)kW | 4/2.5 kW | 4/2.5 kW |
| Distilled Water Requiremnt | Hardness 30ppm, PH7～8, Conductivity 1Us/cm | |
| Unit Weight（kg） | 250 kg | About 551 lbs |
| Dimension L×W×H | 545×720×1770 mm | 21.5×28.3×70 in |

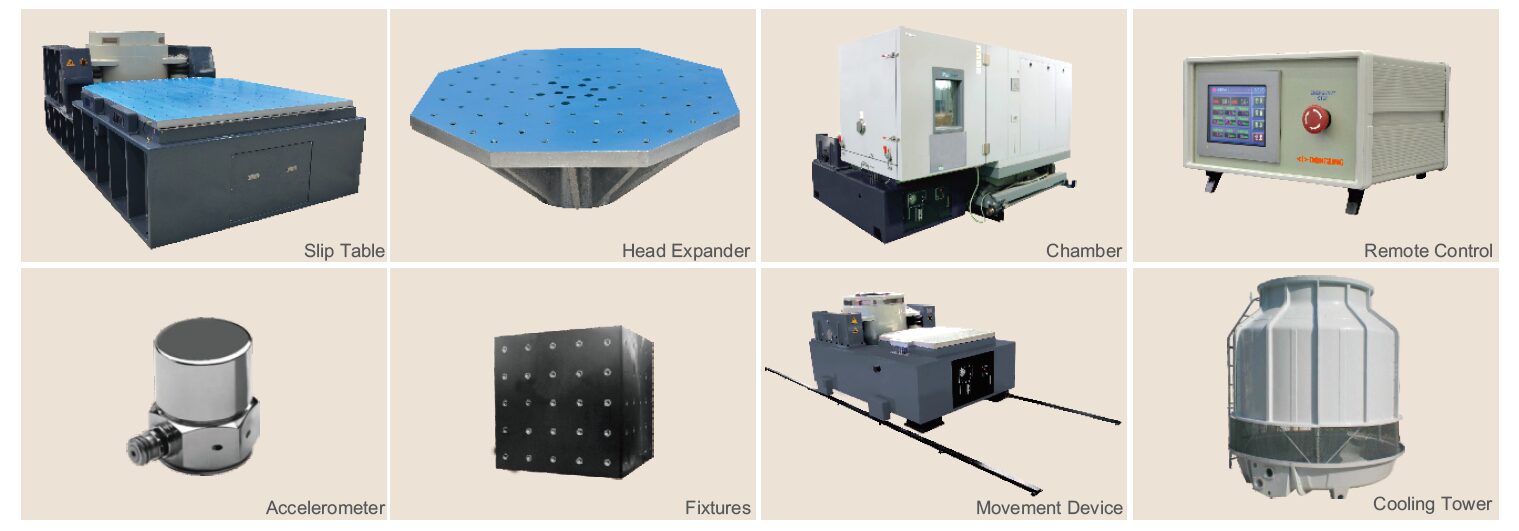

| Options | ● Magnesium or Aluminum Armature ● Combo or Standalone Slip Table ● Motorized Shaker Body Rotation System ● Head Expanders and Vertical Support Platforms ● Thermal barrier ● Customized Fixtures (T, L, Cube) ● Pneumatic Isolators or Free Foundation Isolation Base ● Air Caster or Glide Rail ● Enclosed Air Inlet and Outlet Ducts ● Remote control |
|

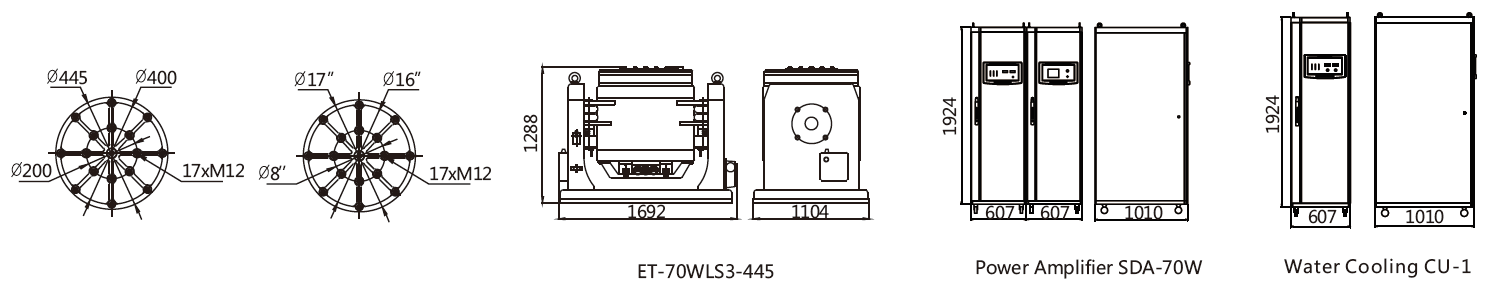

Outline Drawing
NOTE: In keeping with our commitment to continuous product improvement, the information herein is subject to change.
Additional Models & Customization: We also offer a wide range of models and customization options to meet specific testing needs. Please contact us for more details.
