Introduction
Jupiter designs and produces standard and customized equipment to carry out rain tests, Rain chambers are usually manufactured in AlSl304 stainless steel or other corrosion resistant materials. The construction is strong to ensure high durability. This series of chambers an a variety of waterproof, leak has put special products and equipment required to evaluate the water resistance or sealing capacity to meet the GB4208 standard IP protection code for the first two tests to characterize the number 3, 4,and ts performance indicators may also be in line with GB /T4942,GB2423.38, DIN40050,JIS D0203 standards.
According to customer requirements can actually specially designed for car headlights, high- pressure limit automobile connectors waterproof rating lPX9K series of lest equipment. Design of the chamber can be customized based on the test required by customers, to include:
The water content inside the holding tank can be prepared to the desired temperature before starting the test.
Jupiter has designed also a standard rain test chamber of 1000 L capacity for testing the degree of protection against rain and sprays according to CEI EN 60529 STANDARD and CEI EN 60068-2-18 – IPX3 AND IPX4 protection classes. Options are available to comply also with IPX5-IPX6, IPX7, lPX8, lPX9 protection classes.
IPX1/2 Drip Rain Test Chamber
| IPX1/2 Drip Rain Test Chamber | ||||
| Model | JD-X1/2-600 | JD-X1/2-800 | JD-X1/2-1000 | JD-X1/2-1200 |
| Drip area (n/size (L*W: mm) | 0.36/600*600 | 0.64/800*800 | 1/1000*1000 | 1.44/1200*1200 |
| Inner dimensions(D*W*H: mm) | 800*800*1000 | 1000*1000*1000 | 1200*1200*1200 | 1400*1400*1400 |
| External dimensions (D*W*H: mm) | 1250*1000*1750 | 1450*1200*1750 | 1650*1500*1950 | 2050*1800*2150 |
| Drip aperture (mm) | Φ0.4mm | |||
| Hole spacing (mm) | 20mm*20mm | |||
| Turntable size (mm) | Φ600mm | Φ800mm | ||
| Turntable tilt | 0/15°Adjustable | |||
| Power requirements | 220V | |||
IPX3/4 Rain Test Chamber
| IPX3/4 Rain Test Chamber | |||
| Model | JR-X3/4-200 | JR-X3/4-400 | JR-X3/4-600 |
| Pendulum radius (mm) | R200mm | R400mm | R600mm |
| Internal dimensions (D*W*H:mm) | 500*500*500mm | 900*900*900mm | 1300*1300*1300mm |
| External dimensions (D*W*H:mm) | 1000*680*1440 | 1400*1200*1750 | 1800*1520*1950 |
| Flow rate (L/min) | 0-1L/min | 0-2L/min | 0-3L/min |
| Number of spray holes | 12 | 25 | 37 |
| Spray hole diameter (mm) | Φ0.4mm | ||
| Hole spacing (mm) | One nozzle spaced 50mm apart | ||
| Swinging angle (degrees) | 120°(IPX3), 350° (IPX4) or custom settings | ||
| Sample stage rotation method | Continuous forward/reverse rotation/interval rotation | ||
| Power requirements | 220V | ||
| Security measures | Leakage protection, water shortage protection, short circuit protection | ||
IPX34 Split Pendulum Rain Test Chamber
| IPX34 Split Pendulum Rain Test Chamber | ||
| Model | JR-X3/4-800 | JR-X3/4-1200 |
| Pendulum radius (mm) | R800mm | R1200mm |
| External dimensions (D*W*H:mm) | 2400*1800*2000 | 1400*1200*1750 |
| Flow rate (L/min) | 0-5L/min | 0-6L/min |
| Number of spray holes | 50 | 75 |
| Spray hole diameter (mm) | Φ0.4mm | |
| Hole spacing (mm) | One nozzle spaced 50mm apart | |
| Swing speed | 240°round-trip 4S, 720° round-trip 12S (precise control) or custom settings | |
| Sample stage rotation method | Continuous forward/reverse rotation/interval rotation | |
| Power requirements | 220V | |

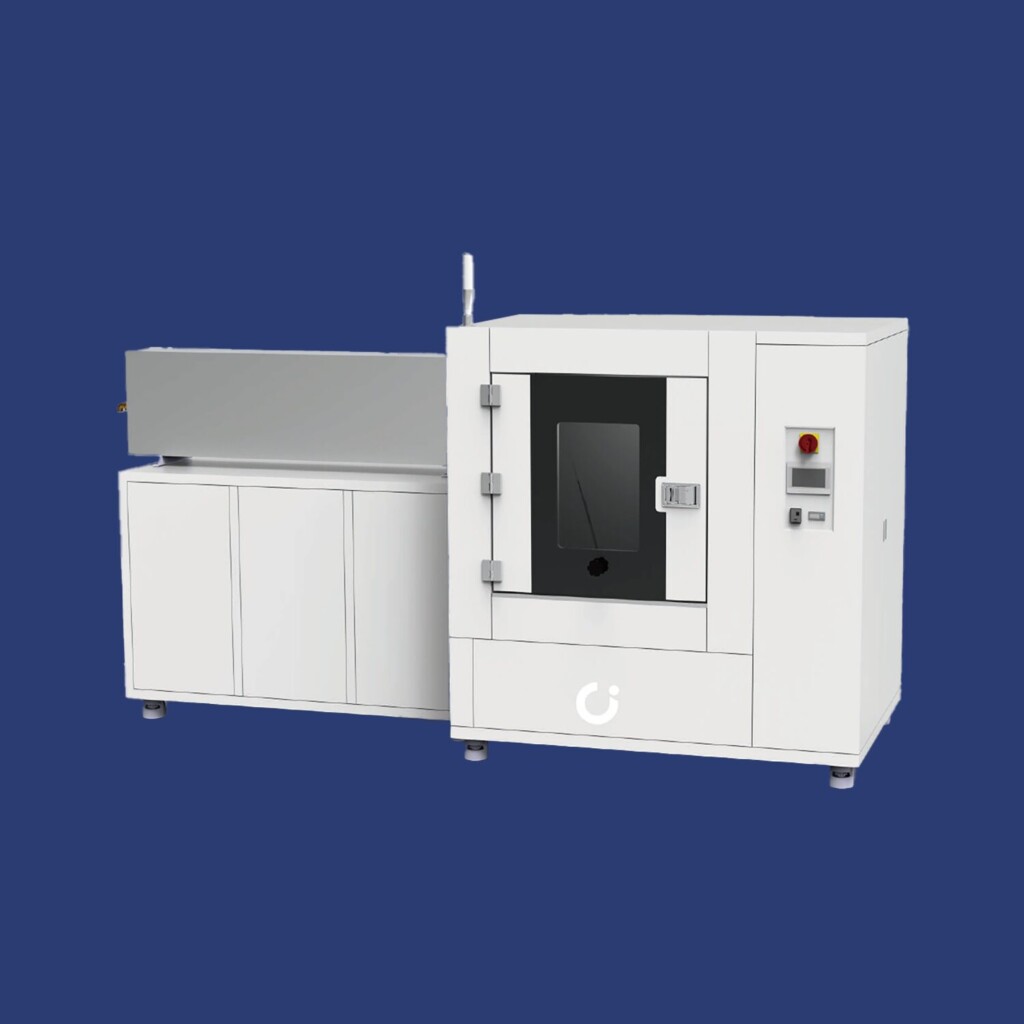

IPX 56 Water Spray Test Chamber
| IPX 56 Water Spray Test Chamber | |||||
| Model | YX-IPX56B-200L | YX-IPX56B-500L | YX-IPX56B-700L | YX-IPX56B-1000L | YX-IPX56B-1400L |
| Volume (L) | 200L | 500L | 700L | 1000L | 1400L |
| Inner dimensions (D*W*H: mm) | 600*600*600mm | 800*800*800mm | 900*900*900mm | 1000*1000*1000mm | 1200*1200*1000mm |
| External dimensions (D*W*H: mm) | 3600*780*1600mm | 3800*980*1750mm | 3800*980*1750mm | 4000*1180*1850mm | 4200*1380*1850mm |
| Power (KW) | 3.0KW | 3.0KW | 3.0KW | 3.0KW | 3.0KW |
| IPX5 nozzle diameter (mm) | Φ6.3mm | ||||
| IPX6 nozzle diameter (mm) | Φ12.5mm | ||||
| IPX5 flow rate (L/min) | 12.5±0.625（L/min) | ||||
| IPX6 flow rate (L/min) | 100±5(L/min) | ||||
| Turntable load capacity (KG) | 50KG | ||||
| Flow control method | Manual adjustment (rotor flowmeter) | ||||
| Security measures | Leakage protection, water shortage protection, short circuit protection | ||||
IPX 56 Water Spray Test Chamber（Swinging Type）
| IPX 56 Water Spray Test Chamber（Swinging Type） | |||||
| Model | YX-IPX56BS-500L | YX-IPX56BS-700L | YX-IPX56BS-1000L | YX-IPX56BS-1700L | YX-IPX56BS-1900L |
| Volume (L) | 500L | 700L | 1000L | 1700L | 1900L |
| Inner dimensions (D*W*H: mm) | 800*800*800mm | 900*900*900mm | 1000*1000*1000mm | 1200*1200*1200mm | 1200*1200*1300mm |
| External dimensions (D*W*H:mm) | 3600*780*1600mm | 3800*980*1750mm | 3800*980*1750mm | 4000*1180*1850mm | 4200*1380*1850mm |
| Power (KW) | 3.0KW | 3.0KW | 3.0KW | 3.0KW | 3.0KW |
| IPX5 nozzle diameter (mm) | Φ6.3mm | ||||
| IPX6 nozzle diameter (mm) | Φ12.5mm | ||||
| IPX5 flow rate (L/min) | 12.5±0.625（L/min) | ||||
| IPX6 flow rate (L/min) | 100±5(L/min) | ||||
| Turntable load capacity (KG) | 50KG | ||||
| Turret height | 100mm | ||||
| Flow control method | Manual adjustment (rotor flowmeter) | ||||
| Security measures | Leakage protection, water shortage protection, short circuit protection | ||||
IPX7 Immersion Test Chamber
| IPX7 Immersion Test Chamber | ||
| Classification | Stainless steel type | Glass type |
| Texture of material | 304 stainless steel | Tempered glass |
| Thickness (mm) | 1.5mm | 12mm |
| Composition structure | Double layer | Single layer |
| Can we customize it | Support customization, please negotiate in advance | |
| Water level display | Stainless steel ruler (accuracy of 1mm), horizontal visual inspection | |
| Water level adjustment method | Inlet/outlet valve, manually adjustable | |
IPX8 Water Pressure Immersion Test Device
| IPX8 Water Pressure Immersion Test Device | ||
| Model | JP-X8-300300 | JP-X8-500500 |
| Internal dimensions | Tank: diameter 300*height 300 | Tank: diameter 500*height 500 |
| External dimension | 460*580*900mm | 600*780*1300mm |
| Thickness of flange | 20mm | 25mm |
| Thickness | 3mm | 4mm |
| Test water depth range | 0-30m | 0-50m |
| Test pressure range | 0-0.3Mpa/0-3bar | 0-0.5Mpa/0-5bar |
| Pressure display method | Pressure sensor | |
| Pressure control method | Automatic adjustment | |
| Supply voltage | 220V | |
IPX9K High-Temperature and High-pressure Rain Test Chamber
| IPX9K High-Temperature and High-pressure Rain Test Chamber | |
| Model | JPN-X9-1000 |
| Internal dimensions | 1000*1000*1000mm |
| External dimension | 1200*980*1750mm |
| Number of spray holes | 4 |
| Spray hole distribution position | 0°, 30°, 60°, 90°, Evenly distributed vertically |
| Spray distance from the sample | 100-200mm/manually adjustable |
| Spray water flow rate | 14-16L/min |
| Spray water temperature | Room temperature or 80 ± 5 ° C |
| (Deviation temperature can be agreed upon) | |
| Spray pressure | 8000-10000Kpa |
| Rotating speed of turntable | 4-10r/min(Accurate and adjustable) |
| Power | 18Kw |
| Supply voltage | 380V |
